Dana 44 Steering Arms and Parts

Our high clearance steering arms are CNC machined from 1018 cold rolled steel and are designed to be mounted using the factory style mounting hardware. We have tested and used our steering arms on off road and competition rigs for well over 15 years, and we know from experience that the best and only safe way to mount steering arms is the OEM mounting. Perfect for SOA, or SAS conversions, a must for huge lifts. We offer steering arms for both the drivers side (LH) and the passenger side (RH). These steering arms are designed and intended for off road use only, and may require modification, fabrication, and/or machining to fit your off road application.

No local sales. Please contact us for a retailer near you.

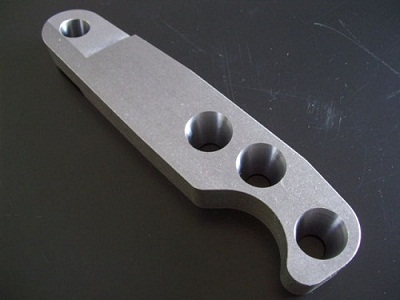

Dana 44 RH High Clearance Steering Arm with GM TRE Taper


Dana 44 RH with GM TRE Taper
RH (passenger) side 1" thick steering arm features the 10 degree correction and a GM TRE taper. Arm measures 6 3/4" from center of ball joint to center of the TRE taper.

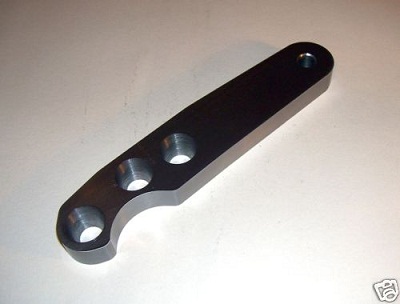

Dana 44 LH High Clearance Steering Arm with GM TRE Taper


Dana 44 LH with GM TRE Taper
LH (driver) side 1" thick steering arm features the 10 degree correction and a GM TRE taper. Arm  measures 6 3/4" from center of ball joint to center of the TRE taper.

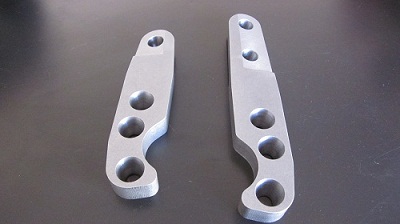

Dana 44 High Clearance Steering Arm Set with GM TRE Tapers


Dana 44 Set with GM TRE Taper
 1" thick arm set features the 10 degree correction and GM tie rod end tapers for your tie rod ends.

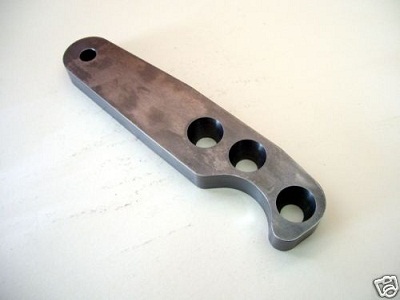

Dana 44 RH Basic High Clearance Steering Arm


Dana 44 rh high clearance steering arm
3/4" thick RH (passenger side) Features a 1/2" pilot hole, measures 6 3/4" from center of ball joint to center of pilot hole. These arms are available without the hole if you prefer.

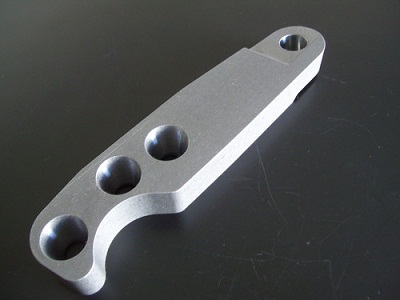

Dana 44 LH Basic High Clearance Steering Arm


Dana 44 LH high clearance steering arm
3/4" thick LH (drivers side) Features a 1/2" pilot hole, measures 6 3/4" from center of ball joint to center of pilot hole. These arms are available without the hole if you prefer.

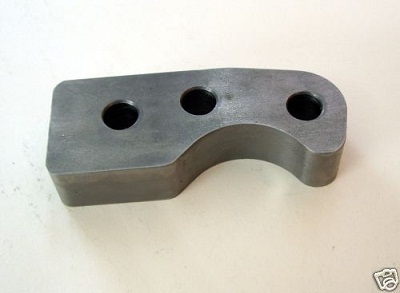

1" Dana 44 high clearance steering arm spacer


Dana 44 high clearance steering arm spacer
1" thick steering arm spacer, for use with our high clearance Dana 44 steering arms. Can be used under our 1.5", 1", or 3/4" thick steering arms. Machined from 1018 CRS, then tumble deburred.

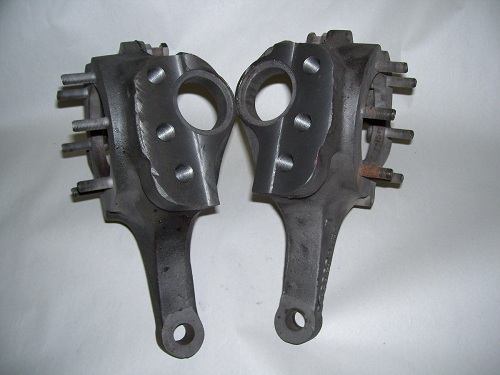

Dana 44 Flat Top Steering Knuckles


Dana 44 flat top steering knuckles
These are the knuckles required for your high clearance steering and/or cross over steering conversions on Dana 44 and GM 10 bolt differentials. Also works with Jeep CJ Dana 30 front differentials (will be happy to send a link to the parts list and instructions required to make them work).










Dana 44, GM 10 bolt, Jeep CJ Dana 30 Upper Ball Joint


Dana 44, GM 10 bolt, Jeep CJ Dana 30 Upper Ball Joint
Premium upper ball joint as pictured. Interchange # Moog 2234R, high quality replacements. For the following applications:1969-1991 Chevy Blazer/GMC Jimmy & Suburban, 1970-1987 Chevy & GMC K10 K20 4x4 Pickup, 1974-1993 Dodge Ramcharger/Plymouth Trailduster, 1971-1993 Dodge W100 W150 4x4 Pickup, 1971-1993 Dodge W200 W250 4x4 Pickup (Dana 44 only), 1971-1979 Ford Bronco, 1972-1979 Ford F150 4x4 Pickup, 1976-1979 Ford F250 4x4 Pickup, 1971-1975 IHC 100 & 1100 4x4 Pickup, 1971-1975 IHC 200 & 1200 4x4 Pickup (Dana 44 only), 1971-1980 IHC Scout II (Dana 30 & Dana 44), 1976-1983 Jeep CJ5, 1976-1986 Jeep CJ7, 1981-1986 Jeep CJ8 (Scrambler), 1974-1984 Jeep Cherokee Full Size, 1974-1987 Jeep J10 & J20 Pickup, 1974-1991 Jeep Wagoneer & Grand Wagoneer Full Size.

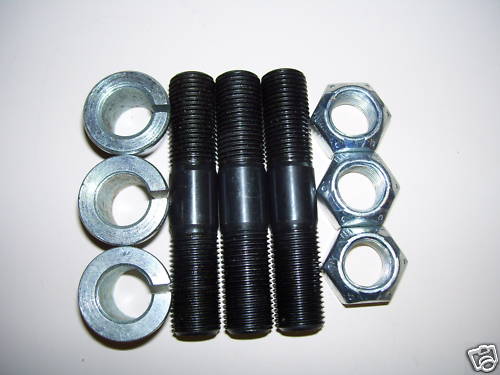

OE Type Dana 44 3" Stud and Conical Washer Install Kit


OE type Dana 44 stud and conical washer install kit
Standard (3") stud and conical washer install kit (as pictured), for use when installing a Dana 44 steering arm. 3" long. Rated stronger than the original OE studs. Conical washers are OE type made from mild steel, then zinc platted for corrosion resistance. Top lock nuts are grade 8.

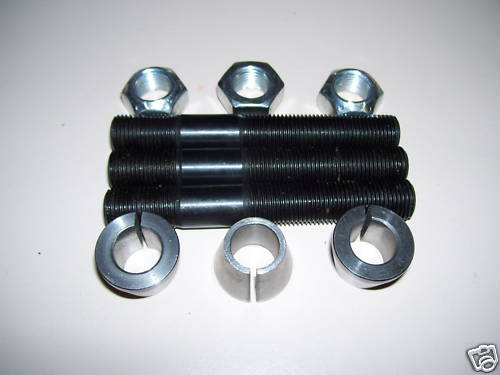

Dana 44 4" Stud and Conical Washer Install Kit


3 inch stud and conical washer install kit
4" stud and conical washer install kit (as pictured), for use installing 1" thick Dana 44 steering arm spacer under your steering arm. Rated at over 195K tensile strength, conical washers are OE type made from mild steel, nuts are top locks.

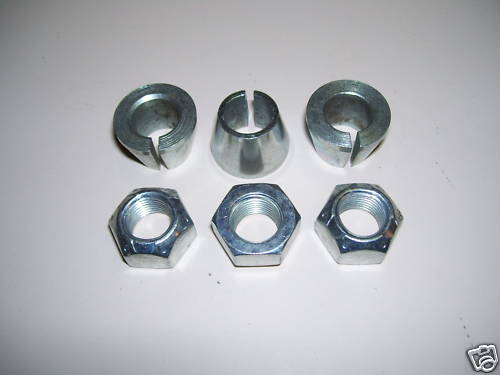

OE Style Dana 44 Conical Washer Kit


OE style Dana 44 conical washer kit
Conical washer kit (as pictured), for use installing Dana 44 steering arm. Conical washers are OE type made from mild steel, then zinc platted for corrosion resistance. Top lock nuts are grade 8.
