Dana 60 Steering Arm and Parts

 All of our high clearance steering arms are made right here in the USA using US made 1018 cold rolled steel and machined on US made CNC vertical milling machines. Designed to be installed directly on top of the factory "tin" spring cap. Our arms have been tested and used on off road and competition rigs for well over 15 years. We offer steering arms for the drivers side (LH) and the passenger side (RH). These steering arms are designed and intended for off road use only, and may require modification, fabrication, and/or machining to work on your off road application. Please contact us for a retailer near you.

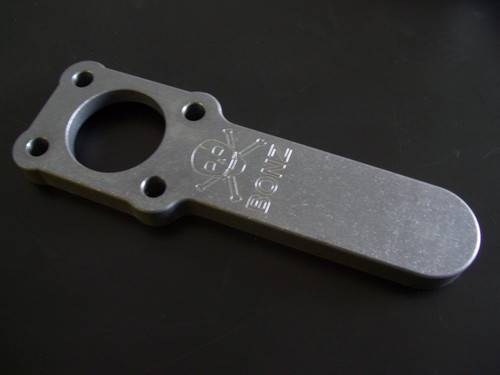

Dana 60 Basic High Clearance Steering Arm


Dana 60 RH/LH high clearance steering arm
 Our Basic 3/4" thick arms can be used on either side since they have no correction. Measurement from the center of king pin to center of the end radius is 7 3/8", enough room for two rod ends. Drill one hole at 7 1/4" for your 8" hydraulic ram.



Bonz D60 basic steering arm

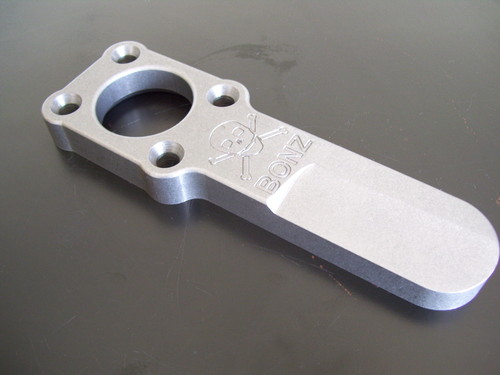

Dana 60 RH High Clearance Steering Arm with Correction


Dana 60 RH high clearance steering arm with correction
 RH (passenger side) 1" high clearance steering arm.  Measurement from the center of king pin to center of the end radius is 7 3/8", enough room for two rod ends. Drill one hole at 7 1/4" for your 8" hydraulic ram.

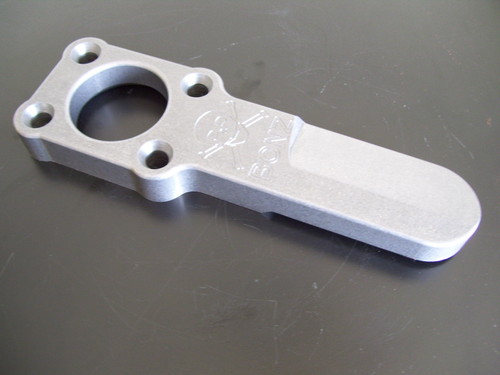

Dana 60 LH High Clearance Steering Arm with Correction


Dana 60 RH High Clearance Steering Arm with correction
LH (driver side) 1" high clearance steering arm.  Measurement from the center of king pin to center of the end radius is 7 3/8", enough room for two rod ends. Drill one hole at 7 1/4" for your 8" hydraulic ram.

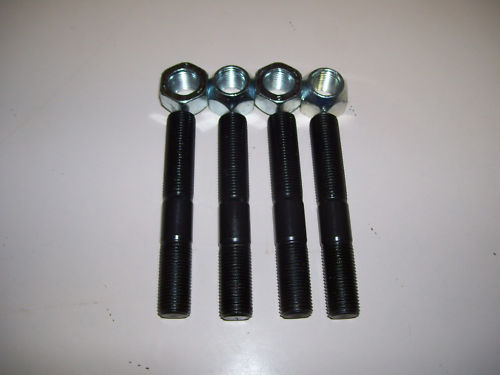

Dana 60 Steering Arm Stud and Nut Install Kit


Dana 60 steering arm stud and nut install kit
Install kits include four studs and four tapered nuts as pictured. The studs are 3 3/8" long, and are rated stronger than the original OE studs. The tapered nuts are OE type and are zinc platted for corrosion resistance.




              Dana 60 arm install kit
